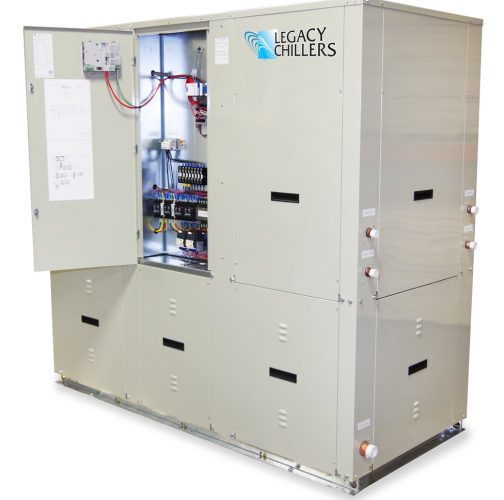

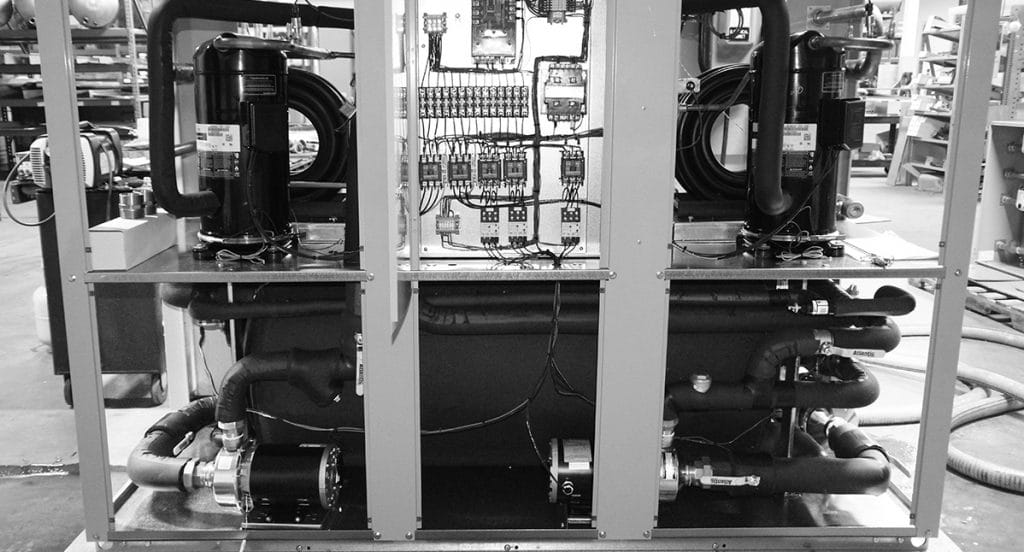

Package Water-Cooled Process Chillers with Integrated Stainless Tank
Legacy’s model PZWT water-cooled chiller system is ideal for smaller lab environment cooling applications. Available in 1.0 to 20.0 HP. Keep in mind that ALL water-cooled condenser process chillers require a way to reject their heat normally to another water source such as a cooling tower.
The Legacy Chillers PZAT process chiller line is ideal for the following applications:
– Brewery
– Winery
– Distillery
– MRI – Medical Imaging
– CT – Medical Imaging
– PET – Medical Imaging
– Linac – Cancer treatment
– Surgical Center climate control
– Lab applications
– Semiconductor testing
– Induced hypothermia systems
– Lasers – military sector
– Laser – private sector
– Custom batch cooling
– Welding machines
– Lasers – military sector
– Laser – private sector
Standard Features
• MADE IN THE USA!
• ETL listed to UL1995 & CAN/CSA C22.2, No. 236-11, 4th edition, 10/14/2011
• Single Point Power Connection
• Idec microprocessor controller with easy to
use touch screen display
• STAINLESS STEEL, brazed plate evaporator
• Scroll compressor with crankcase heater
• Suction Accumulator
• Water flow switch
• Hot Gas Bypass Capacity Control
• 24V control transformer
• Control circuit fusing
• Condenser(s): Coaxial up to PZW22D
• Condenser(s): shell and Tube PZW26D through PZW52D
• Compressor motor contactor
• Painted – Powder Coated (Most Models),
galvanized sheet metal cabinet
• 1/2” insulation on all water and refrigerant lines
• Liquid line drier, sight glass, solenoid, TXV
• Complete refrigerant charge from factory
• Factory Performance Test prior to shipment
Tank
• STAINLESS STEEL storage tank with 1/2 inch insulation
• Fused, STAINLESS STEEL re-circulation pump for tank
operation with ball valve and cleanable strainer
• Tank pressure relief valve, vent and drain hose bibs
Available Options
• Remote Idec touchscreen control panel
• Industrial VPN Router
• 5 Port Ethernet Switch
• BacNet Gateway
• Process Pump VFD Controller
• VFD Compressor Control
• 4 year extended compressor warranty
• Casters (factory mounted)
• Condenser water regulating valve
• 115 volt (rain tight) service outlet
• Non Fused Disconnect
• Phase monitor, line voltage monitor offering protection
against phase loss/reversal, unbalance and hi/lo voltage
• Compressor fusing
• Compressor Sound Cover
• Factory installed evaporator heat tape freeze protection
• Low flow by-pass valve
• Fused, STAINLESS STEEL process pump
• Dual system pump with manual changeover (some models)
• Dual system pump with auto changeover (some models)
• Pump suction isolation valve
• Water pressure gauge set
• Water Flow Meter
• Auto city water changeover panel with filter
• Tank City Water Makeup
• Stainless steel, SCH80 PVC or Polypropylene piping for
deionized and reverse osmosis water systems
• Door Mounted HMI with weather proof cover
Tank Options
• Storage tank sight glass
• Tank low liquid level indicator with dry contacts
| Model No. | Data Sheet Download | Cooling Capacity | Length Inches | Width Inches | Height Inches | Weight LBS |
|---|---|---|---|---|---|---|
| PZWT1S | PZWT1S | 12,100 BTUH | 36.0 | 34.0 | 64.5 | 550.0 |
| PZWT1.5S | PZWT1.5S | 19,200 BTUH | 36.0 | 34.0 | 64.5 | 600.0 |
| PZWT2S | PZWT2S | 22,200 BTUH | 36.0 | 34.0 | 64.5 | 650.0 |
| PZWT2.5S | PZWT2.5S | 34,300 BTUH | 36.0 | 34.0 | 64.5 | 700.0 |
| PZWT3S | PZWT3S | 40,300 BTUH | 36.0 | 34.0 | 64.5 | 800.0 |
| PZWT4S | PZWT4S | 49,300 BTUH | 46.0 | 34.0 | 69.0 | 850.0 |
| PZWT4.5S | PZWT4.5S | 52,000 BTUH | 46.0 | 34.0 | 69.0 | 875.0 |
| PZWT5S | PZWT5S | 60,100 BTUH | 46.0 | 34.0 | 69.0 | 900.0 |
| PZWT7S | PZWT7S | 78,200 BTUH | 46.0 | 34.0 | 65.0 | 1100.0 |
| PZWT8S | PZWT8S | 88,500 BTUH | 75.0 | 34.0 | 70.0 | 1150.0 |
| PZWT9S | PZWT9S | 104,000 BTUH | 75.0 | 34.0 | 70.0 | 1250.0 |
| PZWT11S | PZWT11S | 129,500 BTUH | 75.0 | 34.0 | 70.0 | 1300.0 |
Water cooled capacities based on ARI standard 45 °F LWT and 105 °F Condensing.
| Model No. | Data Sheet Download | Cooling Capacity | Length Inches | Width Inches | Height Inches | Weight LBS |
|---|---|---|---|---|---|---|
| PZWT7D | PZWT7D | 80,600 BTUH | 75.0 | 34.0 | 70.0 | 1350.0 |
| PZWT9D | PZWT9D | 98,600 BTUH | 75.0 | 34.0 | 70.0 | 1400.0 |
| PZWT9.5D | PZWT9.5D | 104,000 BTUH | 75.0 | 34.0 | 70.0 | 1450.0 |
| PZWT10D | PZWT10D | 120,200 BTUH | 75.0 | 34.0 | 70.0 | 1500.0 |
| PZWT13D | PZWT13D | 156,400 BTUH | 75.0 | 34.0 | 70.0 | 1700.0 |
| PZWT15D | PZWT15D | 177,000 BTUH | 85.0 | 34.0 | 70.0 | 1800.0 |
| PZWT18D | PZWT18D | 208,000 BTUH | 85.0 | 34.0 | 70.0 | 1900.0 |
| PZWT22D | PZWT22D | 259,000 BTUH | 85.0 | 34.0 | 70.0 | 2100.0 |
| PZW26D | PZWT26D | 326,250 BTUH | 85.0 | 34.0 | 59.0 | 2600.0 |
| PZW35D | PZWT35D | 460,000 BTUH | 85.0 | 34.0 | 59.0 | 2900.0 |
| PZW43D | PZWT43D | 556,000 BTUH | 100.0 | 34.0 | 59.0 | 3200.0 |
Water cooled capacities based on ARI standard 45 °F LWT and 105 °F Condensing.
